1.Besides that there are no arrow tips in one out of two *.svg files,2.there is some strange line withX mark that appeared to me in *svg file...
- "εν οιδα οτι ουδεν οιδα" (Σωκρατησ) - "The only thing that I know is that I don't know anything" (Socrates)
Edited: Sunday, September 3, 2006 by
V.L.o
|
|
|
|
|
Gamma
Customers
Important Contributors
FamilyTrees.GenoPro.com
Translator
GenoPro version: 3.1.0.1
Last Login: Tuesday, December 2, 2025
Posts: 257,
Visits: 2,863
|

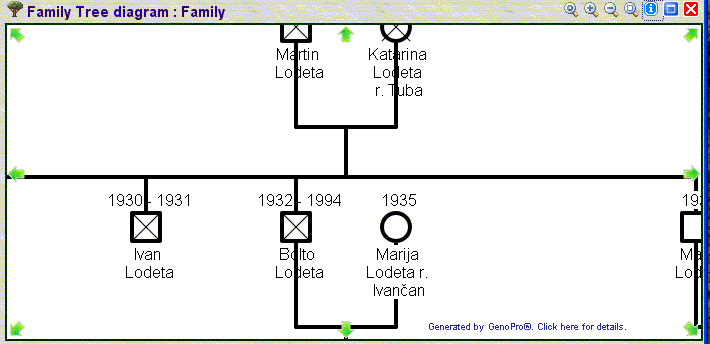

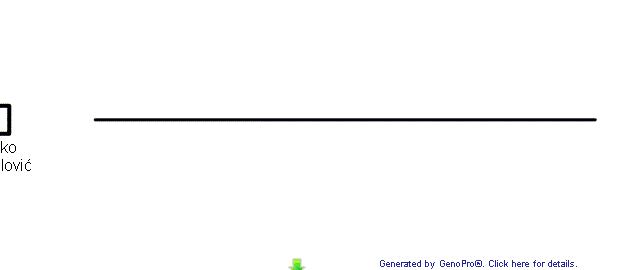

... And then I opened same pictures with Firefox!... 1. Icons completely missing, besides of absolete line
2. Lines sometimes overlapping names - sometimes not
3. Half of the name missing
and finally 4. allready mentioned missing arrow tips (on other location in file they exist).
- "εν οιδα οτι ουδεν οιδα" (Σωκρατησ) - "The only thing that I know is that I don't know anything" (Socrates)
Edited: Wednesday, September 6, 2006 by
GenoProSupport
|
|
|
|
|
Customers
Gamma
GenoPro version: 3.1.0.1
Last Login: Thursday, August 28, 2025
Posts: 11,
Visits: 143
|
I experienced something similar when I uploaded my report and opened it with Firefox. I then tried it with IE (since Opera didn't display any svgs no matter how hard I tried), and they were fine. My guess would be that it had to do with Firefox in some way...
|
|
|
|
|
Administrators
Customers
Important Contributors
FamilyTrees.GenoPro.com
GenoPro version: 3.1.0.1
Last Login: 2 days ago @ 9:23 PM
Posts: 3,464,
Visits: 26,854
|
Is this a new phenomenon, e.g. since beta 18 or has it always been this way? It is extremely difficult to diagnose the cause of such problems without access to the .gno or .xml datafile. If you could send me a copy via the 'Private Message' facility of this forum then I will look into it.
'lego audio video erro ergo disco' or "I read, I listen, I watch, I make mistakes, therefore I learn"
|
|
|
|
|
Administrators
Customers
Important Contributors
FamilyTrees.GenoPro.com
GenoPro version: 3.1.0.1
Last Login: 2 days ago @ 9:23 PM
Posts: 3,464,
Visits: 26,854
|
The erroneous line and 'X' on the SVG image is due to the way VBScript handles number formats. It generally follows the setting of Windows 'locale' and so will use comma as a decimal point instead of a full stop if this is what the 'locale' indicates. Unfortunately SVG insists on having a full stop as a decimal point. I have a work-around for this that will be available shortly. In the meantime you can allows 'customize' you Windows Locale setting in the Control Panel to force a full stop as a decimal point before loading GenoPro and generating a report.
'lego audio video erro ergo disco' or "I read, I listen, I watch, I make mistakes, therefore I learn"
|
|
|
|
|
Administrators
Moderators
Customers
Gamma
FamilyTrees.GenoPro.com
Translator
GenoPro version: 3.1.0.1
Last Login: Tuesday, October 28, 2025
Posts: 4,886,
Visits: 22,799
|
GenoPro can supply a routine to format decimal numbers with a dot (.) as the decimal point.
|
|
|
|
|
Administrators
Customers
Important Contributors
FamilyTrees.GenoPro.com
GenoPro version: 3.1.0.1
Last Login: 2 days ago @ 9:23 PM
Posts: 3,464,
Visits: 26,854
|
Ther is no need. I just need to call SetLocale within genomap.svg to a locale with full stop as decimal point and then I can use the VBScript function 'Cstr'. It's a pity just calling SetLocale isn't enough. VBScript still seems to use the Windows locale when carrying out variable type conversion on arguments to an external function call e.g. 'Report.WriteFormattedLn', hence the need to use Cstr.
'lego audio video erro ergo disco' or "I read, I listen, I watch, I make mistakes, therefore I learn"
|
|
|
|
|
Administrators
Moderators
Customers
Gamma
FamilyTrees.GenoPro.com
Translator
GenoPro version: 3.1.0.1
Last Login: Tuesday, October 28, 2025
Posts: 4,886,
Visits: 22,799
|
I can force the decimal point in within GenoPro by supplying a neutral language to VariantChangeTypeEx().
|
